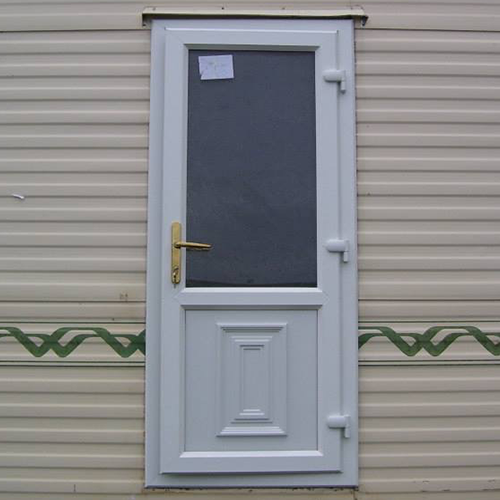

Shed Upvc Doors - Single - Midrail - Top Glass and Bottom Panel

Shed Upvc Doors - Single - Midrail - Top Glass and Bottom Panel

  • DISCOUNT CODE

Enter the DISCOUNT CODE BELOW at checkout stage for extra savings!

Copy - BWO-SPRING-2024
  • No Condensation
  • Double Glazed
  • Nationwide Delivery

Upvc double glazed narrowboat double doors.

  • Toughened security glass.
  • Multi point locking system.
  • Fully adjustable hinges.
  • Maintenance free upvc profile.
  • Thermally Efficient.
  • No Condensation.
  • Wind and water tight.
View full details

Obtain A Quote

Glazing Options

1 6

  • Performance Glass - Blue Tint

    Glass option comes in a delicate blue tint and offers up to 60% reflection from the sun’s solar rays.

    There are many advantages to installing this beautifully coloured roof glass including a 53% reduction from the sun’s glare.

    Blue Tint Thermal Glass
    U-Value - 1.0 / Solar Heat Reflection - 82% / Light Transmission - 25% / Easy Clean Coating.

  • Performance Glass - Dark Tint

    A striking ultra dark tinted glass that increases the recreational use of conservatories, especially in strong sunlight conditions.

    Market leading solar heat reflection, coupled with exceptional light transmission properties.

    Dark Tint (Grey) Thermal Glass
    U-Value - 1.0 / Solar Heat Reflection - 91% / Light Transmission - 8% / Easy Clean Coating.

Colours

  • Our slimline odd leg windows are always white internally.

    The standard external colours which are available on a two week lead time is white, rosewood, golden oak and anthracite grey.

    If you require any other colours, we can professionally paint any RAL colour. if you are on a budget and require a different colour. You can purchase white windows and paint yourself using upvc paints.

  • Golden Oak On White

  • Anthracite Grey On White

  • Rosewood On White

Shed Double Glazed Upvc Doors

Upvc Shed Caravan Double Glazing Doors

  • Upvc Shed Double Glazing Doors

    Our Odd Leg Doors, like our slim-line windows, sit on the external face of the property, giving a coverage of approx 20mm on all sides.

    The internal depth and the thickness of the frame is 53mm. If your wall thickness differs to this. You can fix the door through the depth of the frame into the wall, then trim internally around the frame to finish the installation.

    The trim can be bought from us, or you can purchase from any builders merchants around the country.

    As odd leg doors are designed to sit against the face of the external wall of the property, we have to make alterations to the bottom of the frame to lower the step in and out of the door as there is no specifically designed low threshold system for odd leg doors on the market.

Measuring

  • Always measure odd leg products from the inside. Remove any internal trim around the window to reveal the existing window.

    Simply measure the existing window. If the existing window is a very tight fit or you are measuring a new aperture, you can take the tight sizes (hole size) and reduce the overall size by 5mm - 8mm to allow for easy installation.

    Do not worry if you have rounded corners, these can easily squared off using a hand held oscillating saw. The corners do not need to be 'professionally squared' as the external overlap of the upvc window frame will cover the corners and therefore will not be seen.

Installation - Screw Fix

  • Screw fixing is the most cost effective installation method, however does take more time to install.You can fix the doors using screw fix through the depth of the window frame into the timber subframe.

    Simply open the vent and screw through the frame into the wall. Screws are not included. At least 50mm Screws required.

    Once the door is installed, you may need to cover the internal gap between the window and the wall with a trim. You can use either a pvc or timber trim which can be purchased from us, or from any builders merchants.

Sealant

  • Odd leg doors have a external lip on the frame. This design gives extra protection against adverse weather and is mainly used on properties with narrow wall construction. These buildings are normally externally clad. The door is installed from outside, with the external odd leg profile overlapping the cladding externally approx 15mm - 20mm around the perpetrator of the window (dependent on the installation measuring.)If using silicone, please ensure you use a non drying sealant. Neoprene tape can be installed. This gives a neater / cleaner finish. It is also a quicker install however costs more than the silicone finish.
