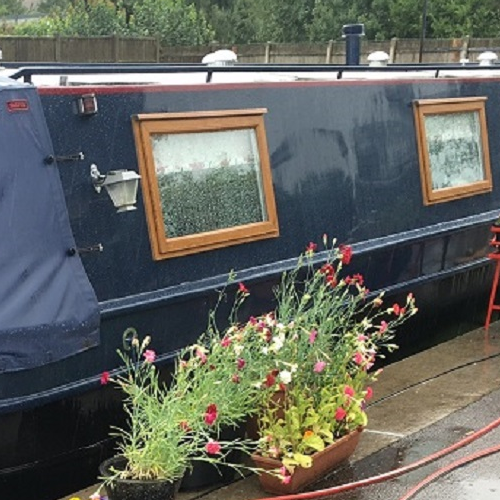

Narrowboat Windows - Upvc Double Glazed Boat Windows

Our warm Narrow Boat Windows come with Double Glazing as standard.

The Slimline Upvc Narrow Boat Window comes with slim dimensions perfectly suited and a modern alternative to narrow boat windows.

Offering many benefits to traditional boat windows such as no condensation, better thermal performance and maintenance free window profile.

Free your mind and choose from a wide variety of external window finishes. Over 30 colours to choose from. Bringing both design and comfort too your narrow boat. Modern Narrow Boat Windows.

The slim-line odd leg window sits on the external face of the building, giving a coverage of 19mm on all sides. A non-drying beading sealant or a neoprene foam tape is used around the external overlap, which when compressed during installation stage, becomes watertight and fills in any gaps within the external cladding giving a clean finish.

The double glazed boat window comes with 24mm toughened security double glazing for narrowboat windows. For added security, the boat window is glazed on double sided security tape. This means that the glass can only be changed from inside the narrowboat for added security and peace of mind.

Further Information

Security:

The glass is  toughened double glazed security glass and is bonded into the window using double sided security tape. Our narrow boat windows can only be deglazed from inside of the boat. Giving you extra peace of mind that you are safe on your narrow boat.

White cockspur handles are installed on all opening windows to ensure for tight secure locking from the inside.

Lead Time:

Our products are manufactured to order. Our manufacturing time for white windows / doors are within 4 weeks & painted windows 6 weeks from order confirmation.

Condition is New:

All our products are manufactured to order.

Related Products:

Our upvc caravan doors are extremely popular. Our double glazed caravan doors come with adjustable hinges so you can adjust the doors if they catch. Multi point locking system is installed as standard for security peace of mind.

Typical Window Cross Section

External Colour Options :

Price Band 1 (Standard) - White

Price Band 2 - Golden Oak (timber effect foil) / Anthracite Grey (timber effect foil)

Price Band 3 - RAL 7016 Anthracite Grey (painted)

Price Band 4 - Bespoke Colours - Any other RAL or BS colour. Write the colour name and code within the notes area.


Internal Colour Options:

Always Standard - White

Bespoke Option - (Painted internal colour options are available upon request.)

Please note that there is a 3 item minimum order for all non standard special colour finishes (price band 3 & 4).


White & Timber Foils



Painted Colour Range


15 Shades of Grey

Free Your Mind

Measuring:

Always measure from inside.

Remove any internal trim around the window to reveal the existing window. Simply measure the existing window. If the existing window is a very tight fit, reduce the overall size by 5mm to allow for easy installation.

Do not worry if you have rounded corners, these can easily squared off using a hand held oscillating saw. The corners do not need to be 'professionally squared' as the external overlap of the upvc window frame will cover the corners and therefore will not be seen.

Installation:

The windows can be two ways dependent on the finish you require.

  • Screw Fix: If your wall construction differs than the above wall thickness, or you'd prefer to trim the internal surround of the window with the existing timber or an new timber beading then you can fix them using screw fix through the depth of the window frame into the timber subframe of the window. Simply open the vent and screw through the frame

  • Aluminium Fixing Kit: Installed by knocking an aluminium fixing bar into the specially designed window, giving a secure clamp fix finish. The fixing bar then doubles up as an internal trim which sits flush to the inner wall. This is suitable for wall construction of 38mm or 53mm.

  • You will need to seal the odd leg frame (external lip) with non drying sealant silicone. As the caravan is constantly moving, if you use standard silicone, it will crack and leak over time. You can also use a neoprene foam tape.

Boat Double Glazing - Narrowboat Windows Style 3

Full Push Out Opening Boat Double Glazing



(if your width measures 650mm, then select from Width Range 600 - 699 mm)


Narrowboat Double Glazing - Narrowboat Windows Style 1


Fixed - Non Opening Narrowboat Window


Choose Width Range
(if your width measures 650mm, then select from Width Range 600 - 699 mm)


Narrowboat Double Glazing - Narrowboat Windows Style 4


Top Opening Window over  Fixed Boat Windows for SALE.


Choose Width Range
(if your width measures 650mm, then select from Width Range 600 - 699 mm)


Narrowboat Double Glazing - Narrowboat Windows Style 2


Fixed - with Transom Replacement Narrowboat Windows


Choose Width Range
(if your width measures 650mm, then select from Width Range 600 - 699 mm)
